Optical networks

1830 PSS/PSI-L Optical Line Systems

ROADM and C+L solutions for reconfigurable and scalable WDM networks

What are the building blocks of WDM optical line systems

Nokia’s 1830 WDM optical line systems support a wide range of functions and features, including:

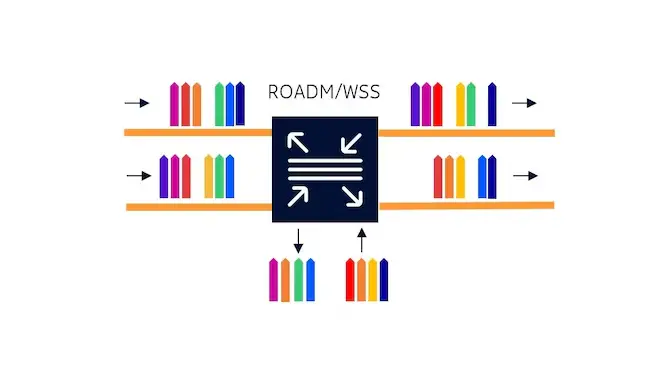

ROADM/WSS diagram: wavelengths entering and leaving a reconfigurable optical add-drop multiplexer, with channels added and dropped locally

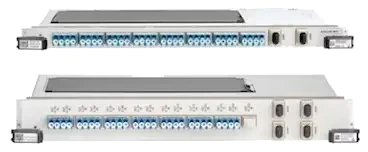

ROADM / WSS

Reconfigurable optical add/drop multiplexers (ROADMs) and Wavelength Selective Switches (WSS) complement WDM multiplexing with the ability to selectively add/drop any wavelength, or many wavelengths, of any speed and spectral width, and enable wavelength switching between multiple optical fibers and directions.

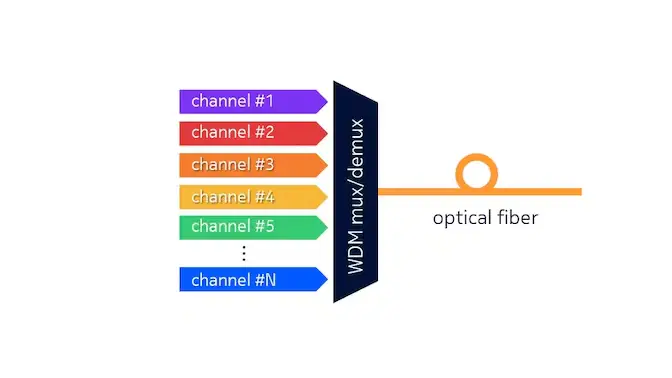

WDM multiplexing diagram: multiple colour-coded channels combined by a WDM mux/demux onto a single optical fiber
WDM multiplexing

WDM multiplexing combines multiple wavelength-specific coherent optics into a single optical fiber, thus increasing the total data-carrying capacity of an optical fiber one hundredfold compared to single-wavelength operation.

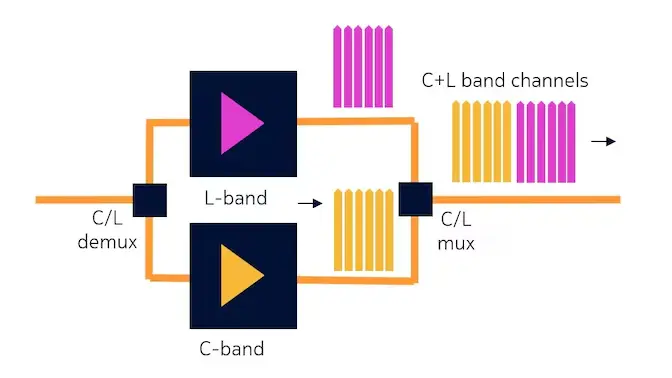

C+L band diagram: a C/L demux splits traffic into separately amplified C-band and L-band paths, recombined by a C/L mux onto one fiber
C+L band

C+L band operation expands the optical fiber spectrum available for the transport of coherent wavelengths, and doubles the total WDM capacity of an optical network. WDM multiplexing, optical amplification, and ROADM/WSS functions are supported in C-band and L-bands, and can be combined to provide continuous operation across both C+L bands.

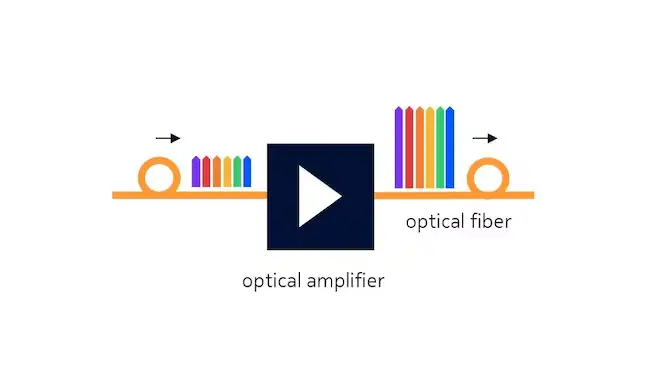

Optical amplifier diagram: an amplifier boosting a group of wavelengths along an optical fiber
Optical amplifiers

Optical amplifiers boost the power levels of the wavelength travelling across an optical fiber, increasing reach in a highly cost and power efficient manner. Erbium-doped optical amplifiers (EDFAs) allow end-end optical connections to be extended over a thousand kilometers, and can be complemented with Raman amplification to extend optical connections even further, over many thousands of kilometers.

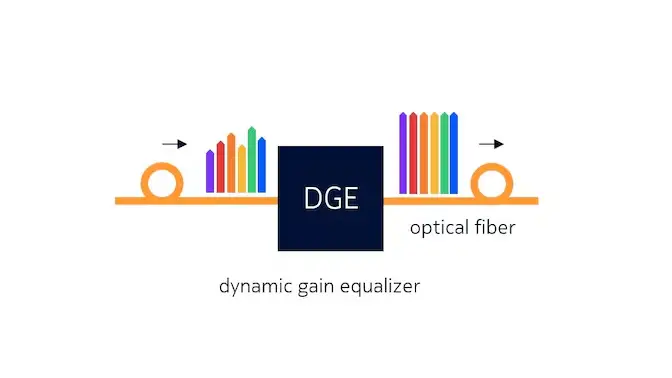

Dynamic gain equalizer diagram: a DGE levelling uneven channel power across wavelengths on an optical fiber
Dynamic gain equalizer

Dynamic gain equalization (DGE) integrated into optical amplifiers and ROADMs ensures that the power levels of all WDM channels operate within optimized limits to maximize performance.

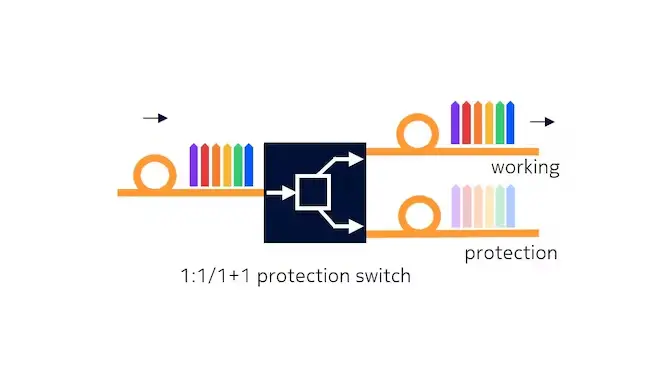

Optical protection switch diagram: 1:1/1+1 protection switching traffic between working and protection fibers
Optical protection switch

Optical Protection Switching (OPS) supports rapid re-direction of a single or multiple channels to an alternative fiber path. This provides 1+1 traffic protection against fiber cuts or line-side equipment failure, while reducing network cost by avoiding the need for duplicate 1:1 transport interfaces.

Support for C+L Band operation maximizes WDM network scale

Optical transport networks traditionally supported WDM over the C-band of optical fibers, typically between 1530 to 1565nm of the optical spectrum. This defined a total of 4800GHz of WDM spectrum available for optical transport, and correspondingly, the maximum number of WDM channels per fiber based on the WDM spectrum used for each channel.

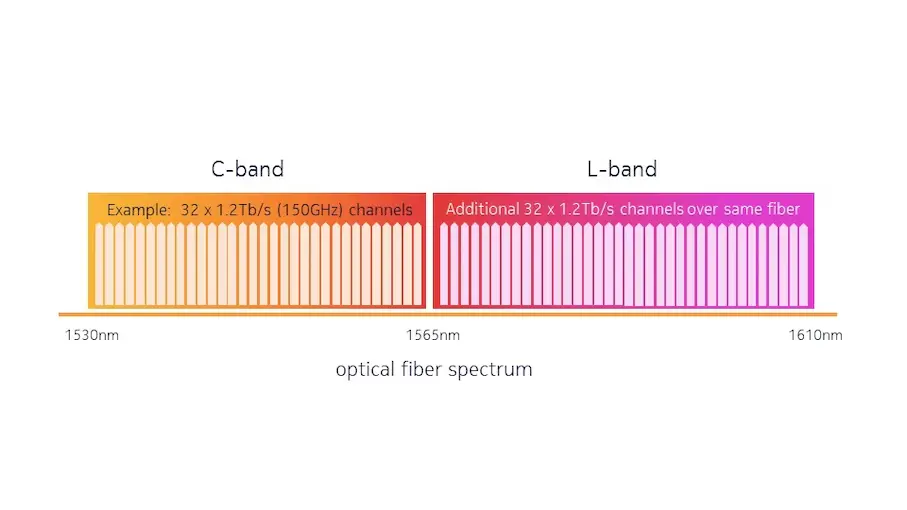

Optical fiber spectrum showing the C-band (1530–1565 nm) with 32 x 1.2 Tb/s (150 GHz) channels and the L-band (1565–1610 nm) adding another 32 x 1.2 Tb/s channels over the same fiber
