7705 SAR
7705 Service Aggregation Router

7705 SAR

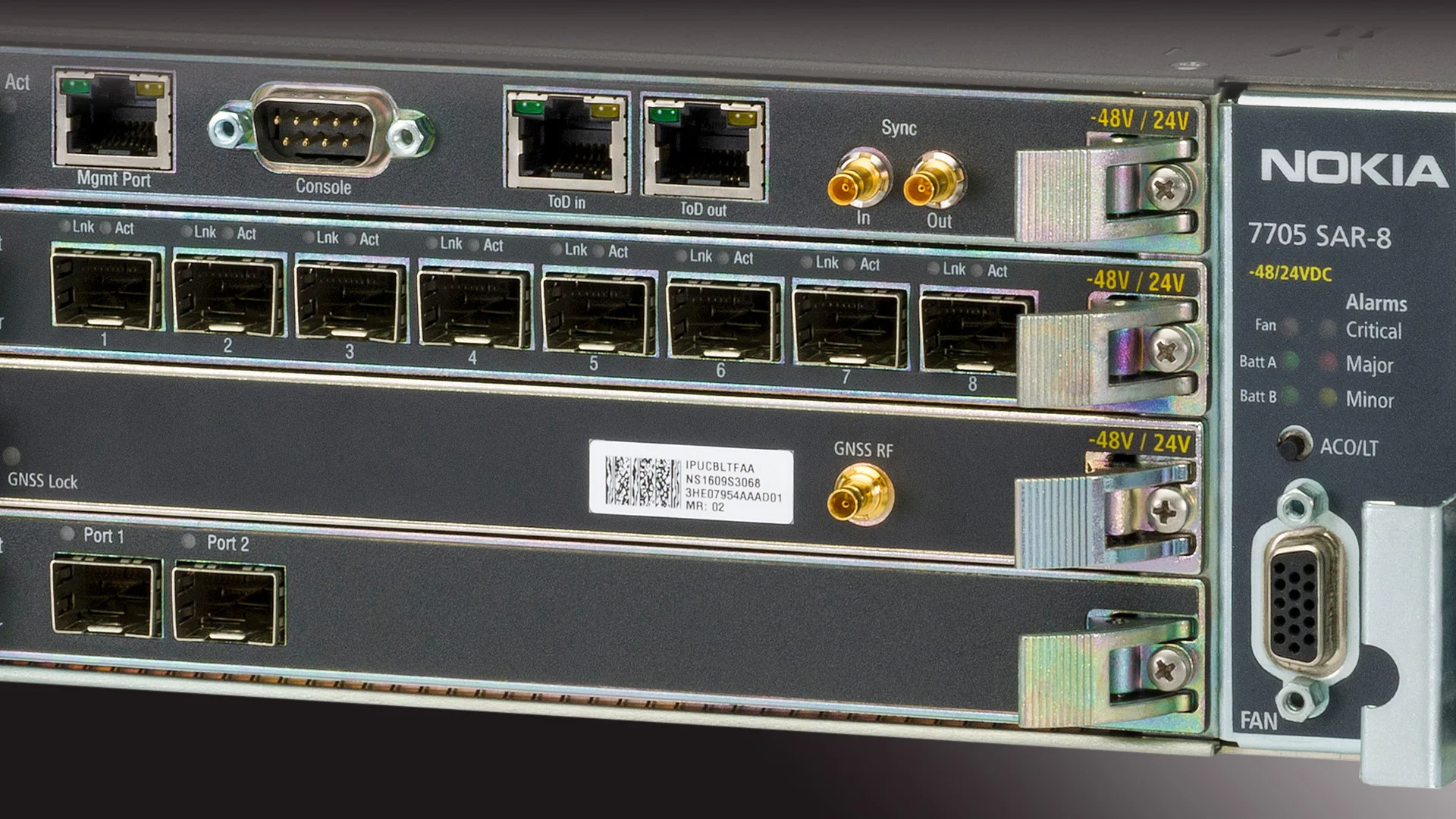

Nokia 7705 SAR (SAR-18, SAR-8, SAR-X, SAR-Ax, SAR-Hc, SAR-Wx) service aggregation routers

Nokia Products
7705 Service Aggregation Router
7705 SAR
System Throughput Full Duplex Fd: 70 Gb/s  |  Adapter Card Module Slots: 12 x 2.5 Gb/s slots, 4 x 10 Gb/s X-Adapter  |  Service Interfaces: N/A
#7705-sar
Our Price: Request a Quote
Get a Quote

Details that matter

Engineered for professionals who demand the best in performance, security, and design.

Easy legacy TDM migration

The 7705 SAR portfolio offers a comprehensive set of T1/E1, T3, SONET/SDH, serial data, electrical utility teleprotection and analog voice interfaces along with software features for asymmetrical delay and jitter compensation.

Routing and resiliency

The depth of its IP/MPLS/segment routing protocol implementation and robust operations, administration and maintenance (OAM) capabilities at all levels set the 7705 SAR apart from its competitors.

Quality of service

The Nokia SR OS software provides superior quality of service (QoS) on the 7705 SAR. The same level of deep buffering and support for ingress and egress shaping that is available on Nokia’s edge and core routing platforms is also available on the 7705 SAR aggregation platform.

Robust security

The 7705 SAR provides a robust set of security features to maintain network integrity in the face of cyberattacks such as session hijacking, spoofing and denial of service (DoS) attacks

Precise timing and synchronization

The 7705 SAR provides microsecond timing and accurate synchronization to support mobile base station requirements and the migration of TDM-based services onto the packet network

Microwave awareness

When used together, the 7705 SAR and Nokia Wavence microwave systems have a number of features that improve routing performance and resiliency over microwave links.

Field longevity

The 7705 SAR portfolio is packaged in a wide range of form factors to accommodate the density and types of services required at any location.

Technical Specifications

Full specifications for the model

SKU 7705 SAR-18 7705 SAR-8 7705 SAR-X
System Throughput Full Duplex Fd 70 Gb/s 30 Gb/s 27 Gb/s
Adapter Card Module Slots 12 x 2.5 Gb/s slots
4 x 10 Gb/s X-Adapter		 2 x 10 Gb/s slots
4 x 2.5 Gb/s slots		 None
Service Interfaces N/A N/A 2 x SFP+ 10 Gb/s
8 x SFP 10/100/1000 Mb/s
4 x Combo SFP/RJ-45 10/100/1000 Mb/s
8 x RJ-45 T1/E1
GPON ONT SFP support
Control Interfaces Console, management, compact flash Console, management Audible alarm cutoff (ACO), console, management, external alarms
Timing Built-in Stratum 3 clock
ITU-T Synchronous Ethernet (SyncE)
IEEE 1588v2
– Master Clock (MC), Boundary Clock (BC), Slave Clock (SC)
– Profiles: IEEE 1588v2 default, ITU-T G.8265.1, G.8275.1 full on-path, G.8275.2 (Partial Time Support (PTS), Assisted PTS (APTS))
– User Datagram Protocol (UDP)/IP (v4 and v6) and Ethernet encapsulation
IEC/IEEE 61850-9-3 power utility profile
C37.238-2017 power profile
Profile interworking from G.8275.1 to power profiles
IETF RFC 5905 Network Time Protocol (NTP)
Adaptive Clock Recovery (ACR), Differential Clock Recovery (DCR)
Building Integrated Timing Supply (BITS)		 Built-in Stratum 3 clock
ITU-T SyncE
IEEE 1588v2
– MC, BC, SC
– Profiles: IEEE 1588v2 default, ITU-T G.8265.1, G.8275.1 full on-path, G.8275.2 (PTS, APTS)
– UDP/IP (v4, v6) and Ethernet encapsulation
IEC/IEEE 61850-9-3 power utility profile
C37.238-2017 power profile
Profile interworking from G.8275.1 to power profiles
IETF RFC 1305, 5905 NTP
ACR, DCR
Sync in/out, Time of day (ToD) in/out		 Built-in Stratum 3 clock
ITU-T SyncE
IEEE 1588v2
– MC, BC, SC, Time Clock (TC)
– Profiles: IEEE 1588v2 default, ITU-T G.8265.1, G.8275.1 full on-path, G.8275.2 (PTS)
– UDP/IP (v4, v6) and Ethernet encapsulation
IEC/IEEE 61850-9-3 power utility profile
C37.238-2017 power profile
Profile interworking from G.8275.1 to power profiles
IETF RFC 1305 Network Time Protocol (Version 3)
IETF RFC 1305, 5905 NTP
ACR, DCR
Sync in, ToD/1 pulse per second (1PPS) out
Common Equipment Redundancy Control, switch fabric, power feeds, cooling fans Control, switch fabric, power feeds, cooling fans Power feeds, cooling fans
Dimensions Height: 10 RU, 44.5 cm (17.5 in)
Width: 43.9 cm (17.3 in)
Depth: 30 cm (11.8 in)
Rack-mountable in a 48.2-cm rack, 30-cm depth (standard 19-in equipment rack, 12-in depth)		 Height: 2 RU, 8.9 cm (3.5 in)
Width: 44.5 cm (17.5 in)
Depth: 26.4 cm (10.4 in)
Rack-mountable in a 48.2-cm rack, 30-cm depth (standard 19-in equipment rack, 12-in depth)		 Height: 1 RU 4.37 cm (1.72 in)
Width: 44.2 cm (17.4 in)
Depth: 25.4 cm (10 in)
Rack-mountable in a 48.2-cm rack, 30-cm depth (standard 19-in equipment rack, 12-in depth)
Power Two feeds: -48 V DC/-60 V DC
AC power solutions available: 200 V AC to 277 V AC, 50 Hz/60 Hz		 Two feeds: -48 V DC/-60 V DC, or +24 V DC
AC power solutions available: 100 V AC to 240 V AC, 50 Hz/60 Hz		 Two feeds: -48 V DC/-60 V DC, or +24 V DC
Cooling One tray of eight fans with redundancy One tray of eight fans with redundancy Built-in five-fan array with redundancy
Normal Operating Temperature Range -5°C to +45°C (23°F to 113°F) sustained
-5°C to +55°C (23°F to 131°F) extended (96 hours)		 -40°C to +65°C (-40°F to +149°F) sustained -40°C to +65°C (-40°F to +149°F) sustained
Normal Humidity 5% to 85%, non-condensing
Short-term (96 hours) extended humidity range: 5% to 95%, non-condensing		 5% to 95%, non-condensing 5% to 95%, non-condensing
Shipping And Storage Temperature -40°C to +70°C (-40°F to +158°F) -40°C to +70°C (-40°F to +158°F) -40°C to +70°C (-40°F to +158°F)
SKU 7705 SAR-Ax 7705 SAR-Hc 7705 SAR-Wx
System Throughput Fd 5 Gb/s 2.5 Gb/s 5 Gb/s
Service Interfaces 4 x Combo SFP/RJ-45 10/100/1000 Mb/s
8 x SFP 10/100/1000 Mb/s
2 x RJ-45 10/100/1000 (PoE/PoE+ capable)		 2 x RJ-45 10/100/1000 Mb/s
2 x SFP 100/1000 Mb/s
2 x RS-232 (async)		 3 x SFP 100/1000 Mb/s
2 x RJ-45 100/1000 Mb/s
Variant 2: PoE+ on one RJ-45 Ethernet port
Control Interfaces Console, management ACO, console, management, external alarms Console, management, external alarms
Timing Built-in Stratum 3 clock
ITU-T SyncE
IEEE 1588v2
– MC, BC, SC, TC
– Profiles: IEEE 1588v2 default, ITU-T G.8265.1, G.8275.1 full on-path, G.8275.2 (PTS)
– UDP/IP (v4, v6) and Ethernet encapsulation
IEC/IEEE 61850-9-3 power utility profile
C37.238-2017 power profile
Profile interworking from G.8275.1 to power profiles
IETF RFC 1305, 5905 NTP
Sync in, ToD/1PPS out, GNSS receiver		 Built-in Stratum 3 clock
ITU-T SyncE
IEEE 1588v2
– MC, BC, SC, TC
– Profiles: IEEE 1588v2 default, ITU-T G.8265.1, G.8275.1 full on-path, G.8275.2 (PTS)
– UDP/IP (v4, v6) and Ethernet encapsulation
IEC/IEEE 61850-9-3 power utility profile
C37.238-2017 power profile
Profile interworking from G.8275.1 to power profiles
IETF RFC 1305, 5905 NTP		 Built-in Stratum 3 clock
ITU-T SyncE
IEEE 1588v2
– MC, BC, SC, TC
– Profiles: IEEE 1588v2 default, ITU-T G.8265.1, G.8275.1 full on-path, G.8275.2 (PTS)
– UDP/IP (v4, v6) and Ethernet encapsulation
IEC/IEEE 61850-9-3 power utility profile
C37.238-2017 power profile
Profile interworking from G.8275.1 to power profiles
IETF RFC 1305, 5905 NTP
Variant 2: GNSS receiver
Dimensions Height: 1 RU 4.3 cm (1.7 in)
Width: 43.79 cm (17.24 in)
Depth: 20.1 cm (7.9 in)
Rack-mountable in a 48.2-cm rack, 30-cm depth (standard 19-in equipment rack, 12-in depth)		 Height: 17.8 cm (7 in)
Width: 9.14 cm (3.6 in)
Depth: 15.24 cm (6 in)
DIN rail and wall/panel-mountable		 Height: 9.7 cm (3.8 in)
Width: 35.6 cm (14 in)
Depth: 16.5 cm (6.5 in)
Pole-, wall-, strand-mount brackets
Carrying kit
Weather-proof cable termination kits
EMC Class B
IP65
Power Two feeds: -48 V DC/-60 V DC, or +24 V DC
AC power solutions available: 100 V AC to 240 V AC, 50 Hz/60 Hz		 ±20 V DC to 75 V DC
HV power solution available: 100 V AC to 240 V AC, 50 Hz/60 Hz; 88 V DC to 300 V DC		 AC: 100 V AC to 240 V AC, 50 Hz/60 Hz
Power over coaxial cable: 90 V AC, 50 Hz/60 Hz, quasi-square wave
Cooling Passively cooled Passively cooled Passively cooled
Normal Operating Temperature Range -40°C to +65°C (-40°F to +149°F) sustained with a minimum airflow rate of 0.5 m/s
-40°C to +60°C (-40°F to +140°F) in a still air environment		 -40°C to +70°C (-40°F to +158°F) sustained with a minimum airflow rate of 0.5 m/s
-40°C to +65°C (-40°F to +149°F) in a still air environment		 -40°C to +65°C (-40°F to +149°F) sustained
Normal Humidity 5% to 95%, non-condensing 5% to 95%, non-condensing 2% to 100%, condensing
Element-proof enclosure/connectivity
Shipping And Storage Temperature -40°C to +70°C (-40°F to +158°F) -40°C to +70°C (-40°F to +158°F) -40°C to +70°C (-40°F to +158°F)

Documentation

Download product documentation and resources

Product Datasheet

7705 SAR Datasheet

Custom Configurations

Looking for more configuration options or custom setups? Our team can help you find the right solution based on your requirements.

Contact Us

Bulk Purchase Support

Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.

Contact Us
Nokia Products
7705 Service Aggregation Router
7705 SAR
System Throughput Full Duplex Fd: 70 Gb/s  |  Adapter Card Module Slots: 12 x 2.5 Gb/s slots, 4 x 10 Gb/s X-Adapter  |  Service Interfaces: N/A
#7705-sar
Our Price: Request a Quote
Get a Quote
Discover More

Similar Products

Explore other configurations and models that might suit your needs.

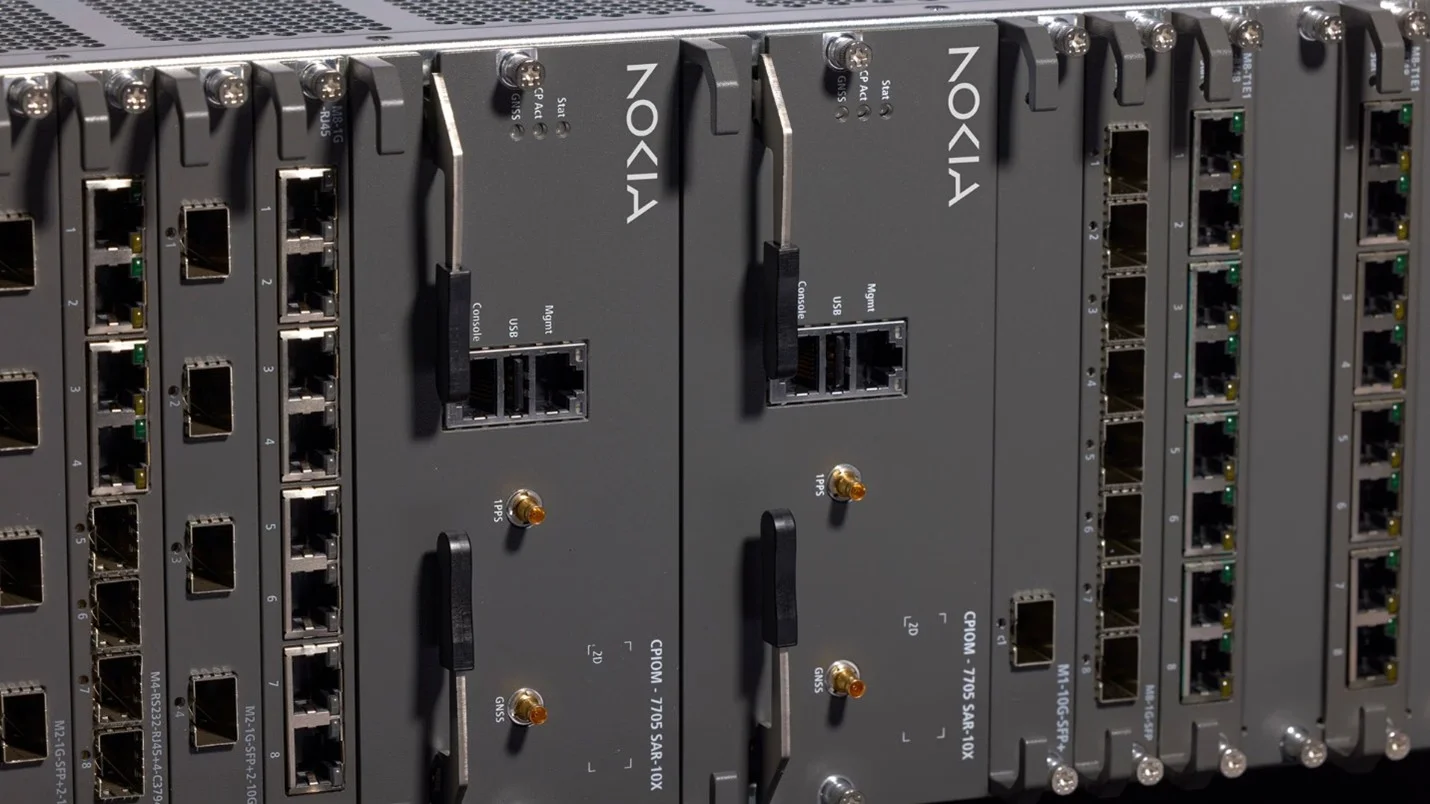

7705 SAR Gen2 Recommended

7705 SAR Gen2

#7705 SAR-Mx

  • System Throughput Full Duplex Fd: Up to 50 Gb/s
  • Ports: 2 x 25G SFP28/SFP+ 6 x 10/1G SFP/SFP+ 8 x 1G SFP All ports are MACsec-capable
  • Ram: 32 GB
  • Memory Buffer Size: Up to 2 GB
  • Mda Slots: 1 slot
View Details

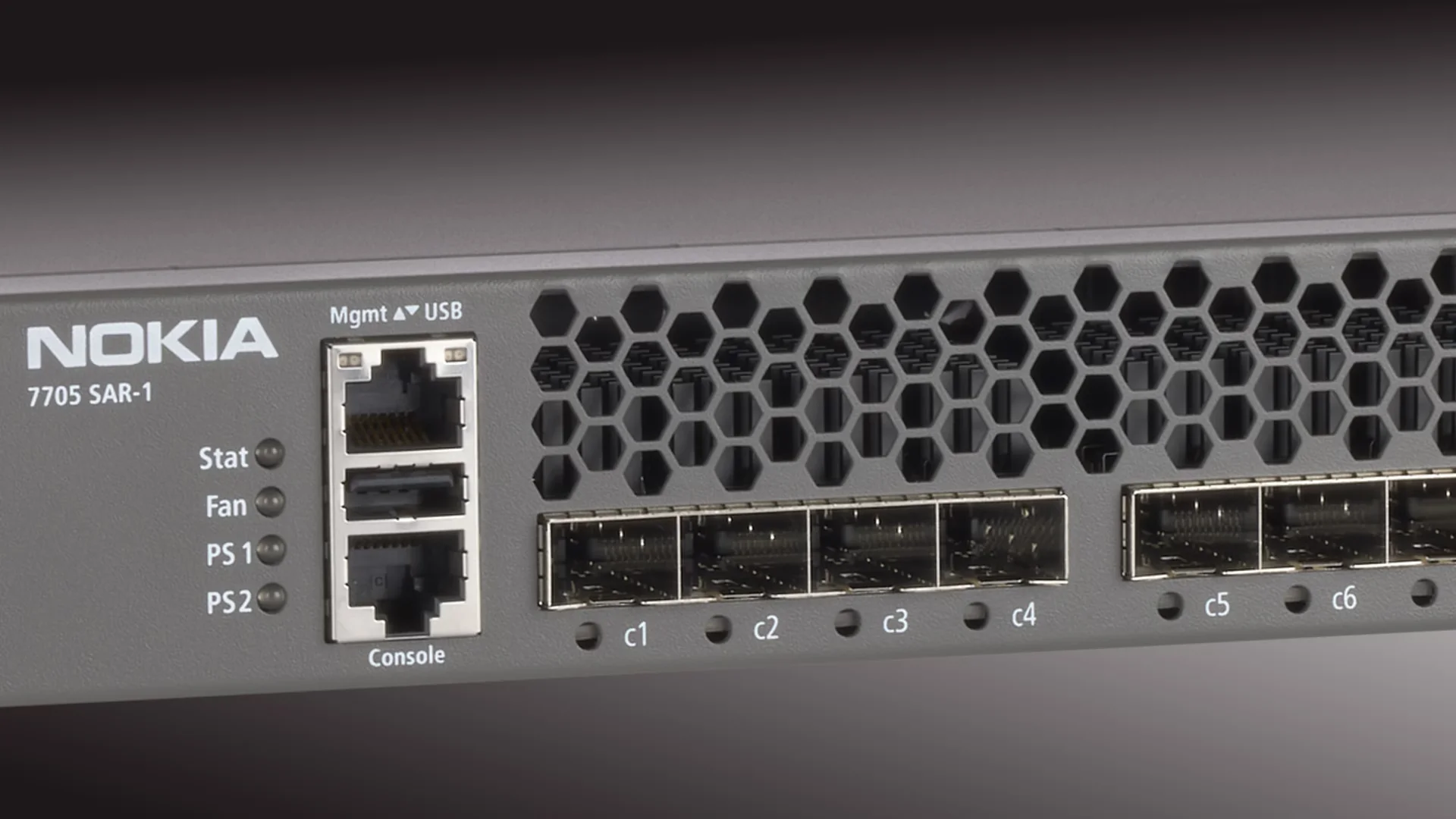

7705 SAR-1 Recommended

7705 SAR-1

#7705 SAR-1

  • System Throughput Full Duplex Fd: Up to 50 Gb/s
  • Ports: 10 x 10G SFP+/SFP, including 4 x MACsec-capable 10G ports 6 x 1G SFP
  • Control Interfaces: Console, management, USB
  • Indicators: Management, power supply status LEDs Per port link and activity status LEDs System (Stat), fan status LED
  • Hardware Redundancy: Power inputs, cooling fans
View Details

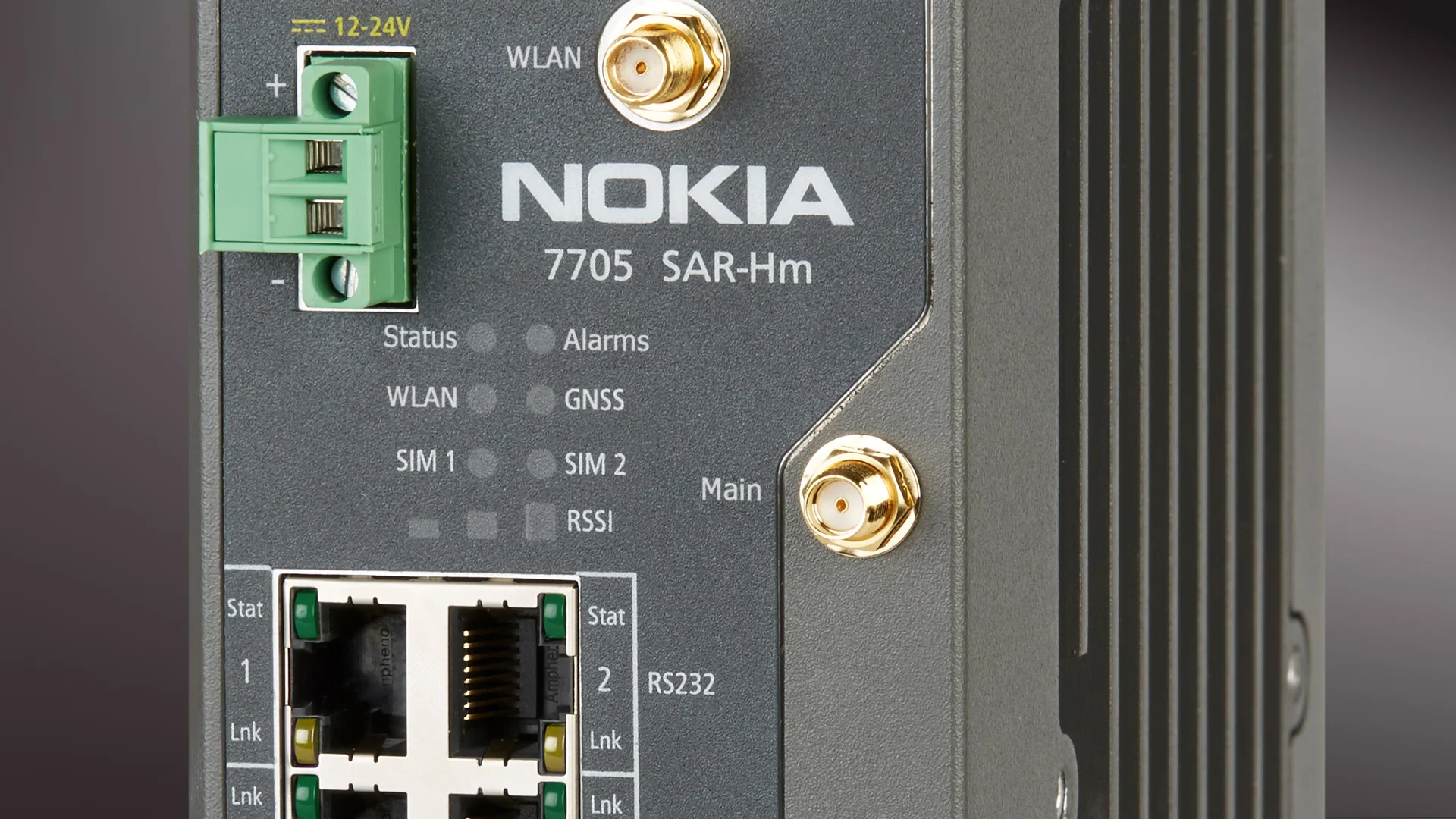

7705 SAR-Hm/Hmc Recommended
