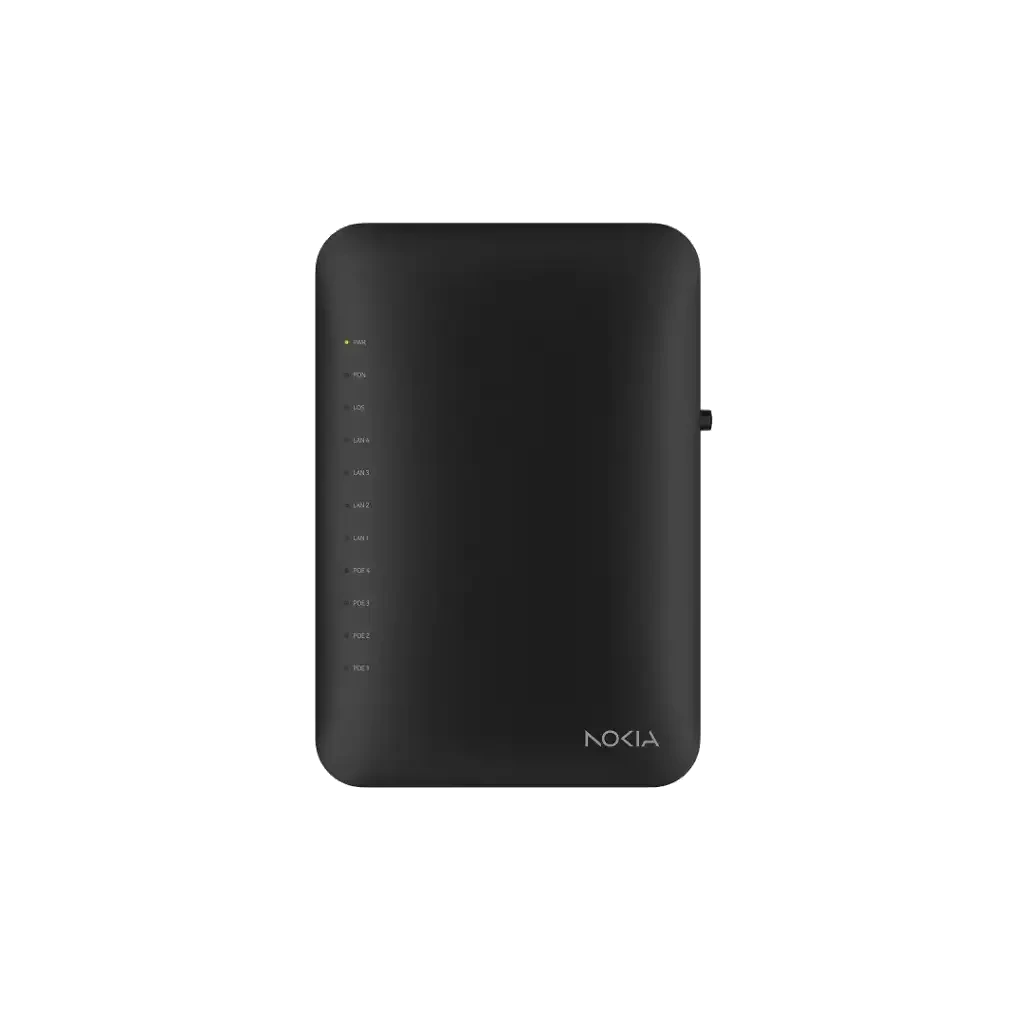

G-040P-T

Aurelis MF-2

#Aurelis MF-2

• Full Service Platform: Multiservice support: – IPTV services – Multimedia service – High-speed Internet access – Wi-Fi – IoT – Cloud-based applications
• Lt Support: 16-port GPON card 16-port Multi-PON card supporting GPON, XGS-PON, Multi-PON and 25G PON
• Network Termination Nt Support: Aurelis MF-2 Optical Switch LMNT-B: – 800 Gb/s switching matrix (bidirectional) – Active/Active redundancy – 2 QSFP cages supporting 100 GigE, 40 GigE, 4 x 25 GigE or 4 x 10 GigE optics
• Security: AES encryption
• Management: Fully managed by the Aurelis Command Center (CC)

U-00240XP

#u-00240xp

Nokia Aurelis Optical LAN: U-00240XP

U-490XP-P

#U-490XP-P

• Dimensions: Width: 235 mm (9.3 in) Height: 40 mm (1.6 in) Depth: 160 mm (6.3 in)
• Weight: 2.15kg (4.7 lb) (including PSU)
• Mounting Options: Desk or wall mount
• Power Consumption: Standby mode: 4.6 W Typical mode: 8 W
